DMD104

$149.99

SKU: DMD104 Categories: , ,

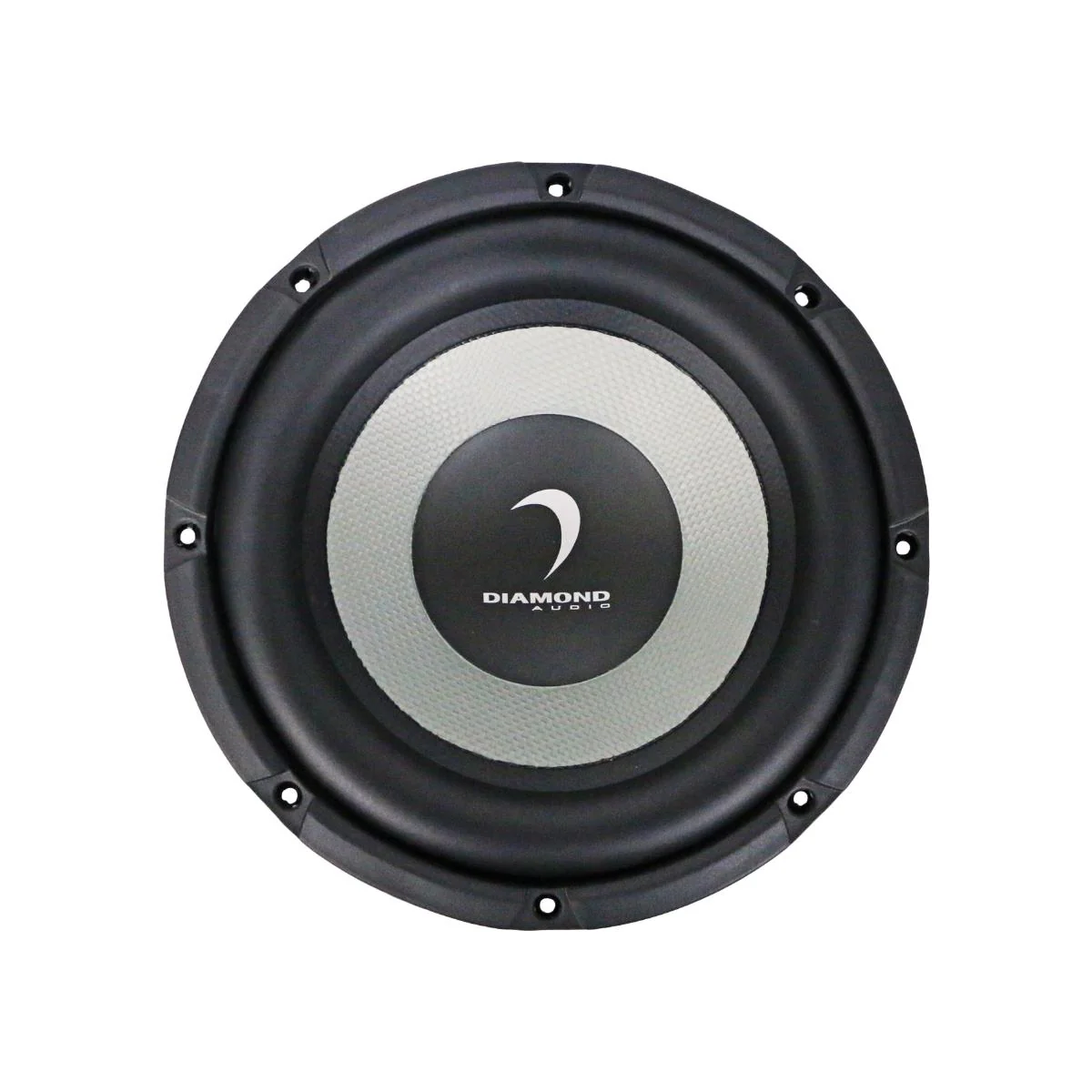

Black and silver round audio speaker.

Description

DMD104 – DMD Series 10″ Dual Voice Coil Subwoofer (4Ω)

Introducing the DMD Series Subwoofers from Diamond Audio – the perfect entry-level choice for those seeking economical value and reliable performance. Achieving significant performance improvements through continuous R&D, the DMD Series incorporates chemically treated voice coils and cross-flow design basket frames for superior thermal heat dissipation.

Engineered for optimal value, the DMD Series features a higher-density NBR half-roll surround to ensure greater linear performance. The Klippel® DA optimized motor and suspension symmetry guarantee that DMD Series subwoofers deliver tight and balanced bass notes, enhancing any car audio system.

Experience the exceptional quality and reliability of the DMD Series Subwoofers. Upgrade your audio system today and enjoy the perfect blend of performance and value with Diamond Audio’s DMD Series.

Specifications

THIELE/SMALL PARAMETERS

  • Power: 200W RMS/400W MAX
  • SPL(dB): 83.8
  • Re(Ω): 3.85
  • Qms: 4.5
  • Qes: 0.62
  • Qts: 0.55
  • Fs(Hz): 33
  • Vas(L): 26.5
  • Cms(mm/N): 0.18
  • Mms(g): 131
  • Sd(cm²): 0.0325
  • BL(T*M): 13.0
  • Xmax(mm): 8.1

DIMENSIONS

  • Diameter: 10.55″ (267.9mm)
  • Mounting Diameter: 9.12″ (231.5)
  • Mounting Depth: 5.18″ (131.5mm)
  • Magnet Diameter: 5.57″ (141.4mm)

ENCLOSURES

SEALED

  • Vb (ft3): 0.45
  • F3 (Hz): 54
  • QTC: .70
  • Pe (W): 200

VENTED

  • Vb (ft3): 1.25
  • Fb(Hz): 36
  • F3(Hz): 31
  • Port (Diameter x Length): 3″ (76.2mm) x 10″(254mm)
  • Pe (W): 200

FEATURES

  • Black Polypropylene Fiber Weave Cone
  • High Grade Rolled Edged 4 Leg Black Powder Coat Stamped Frame
  • Oversized Black Chrome Push Terminals
  • Black Spider With Woven Tinsel Leads
  • Black PVC Wrap Around Mounting Gasket
  • Vented Pole Piece For Cooler Operation
  • Klippel Optimized Motor And Suspension Symmetry
